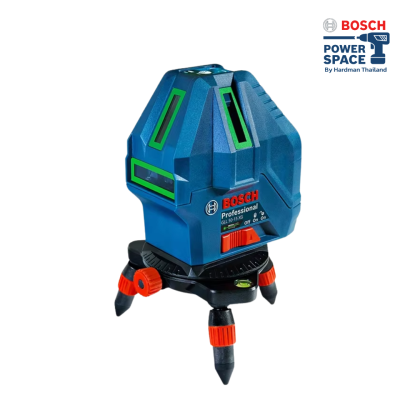

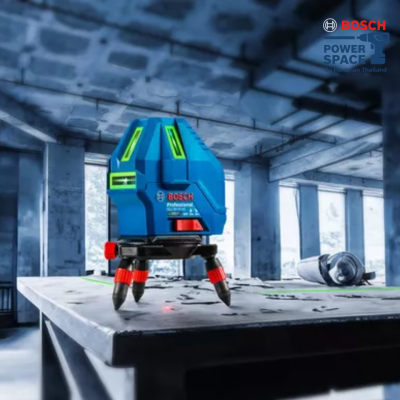

BOSCH Green Beam Line Laser Level 5 Lines Model GLL 50-15 G

BOSCH Green Beam Line Laser Level 5 Lines Model GLL 50-15 G

Achieve precise and effortless leveling with the GLL 50-15 XG Professional. Featuring Bosch's advanced green laser technology, this tool provides laser lines that are up to four times more visible than standard red lasersperfect for high-visibility leveling tasks. This highly versatile leveling tool is equipped with an intuitive HMI control interface, allowing users to focus entirely on the task at hand.
Additionally, the tool offers IP54-rated protection, making it highly resistant to dust and water splashesideal for tough job site environments.

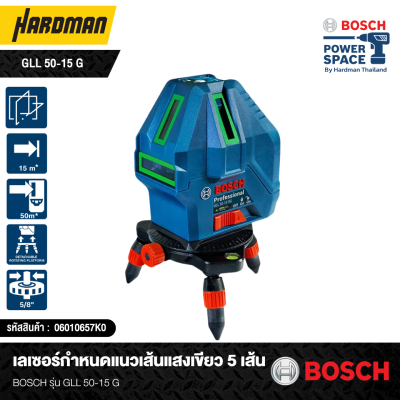

Features of BOSCH Green Beam Line Laser Level 5 Lines Model GLL 50-15 G

• Green Laser Technology ensures excellent visibility even in brighter conditions

• Intuitive user-friendly HMI control made for user simplicity

• Detachable rotating platform enables precise laser lines position

Technical Information

• Laser diode: Line: 500 540 nm, < 10 mW
  Point: 630 650, < 1 mW

• Operating temperature: -10 45 °C

• Storage temperature: -20 70 °C

• Laser class: 2

• Working range, value: 15 m

• Working range: 15 m

• Working range with receiver, value: 50 m

• Working range with receiver: 50 m

• Accuracy: Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)

• Working range of laser points, max.: 5 m (bottom)

• Self-levelling range: ± 3°

• Levelling time: 4 s

• Dust and splash protection: IP 54

• Power supply: 4 x 1.5 V LR6 (AA)

• Tripod thread: 5/8"

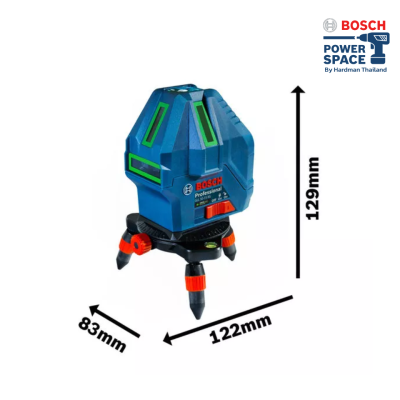

• Weight, approx.: 0.5 kg

• Colour of laser line: green

• Color of plumb points: red

Accessories and Applications

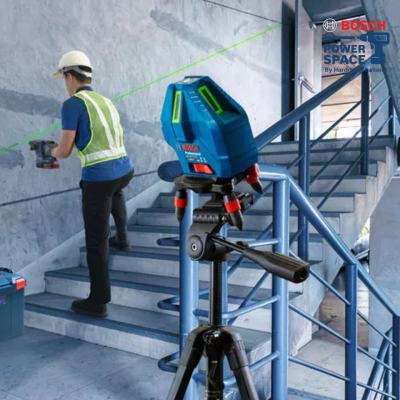

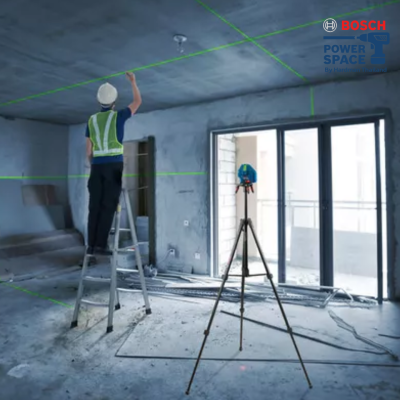

The GLL 50-15 XG Professional offers a working range of up to 50 meters when used with the LR 7 receiver. Its detachable rotating base allows for precise adjustment of laser line positions while maintaining the exact location of the vertical plumb point. This makes it ideal for a wide range of tasks such as installing partition walls, tiling, and interior finishing work.

Additional Information

With its compact design and standard-compliant carrying pouch, the GLL 50-15 XG is easy to transport around the job site. This makes it a reliable companion for handling a wide variety of leveling tasks with ease and convenience.

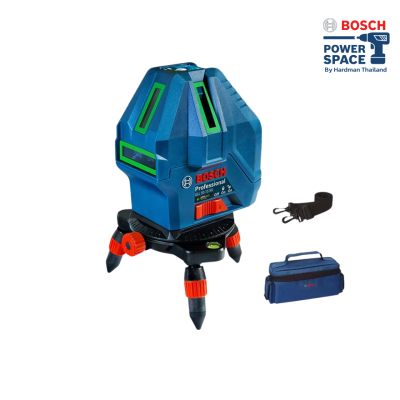

Scope of Delivery (Tool Only)

• GLL 50-15 G
• 1 x shoulder strap
• Carrying bag

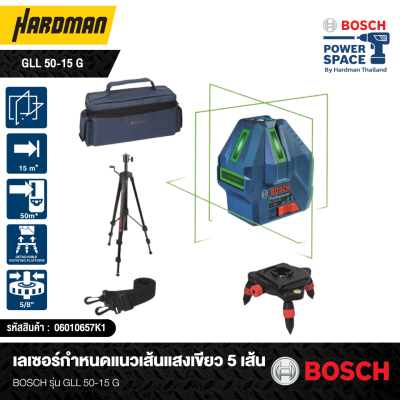

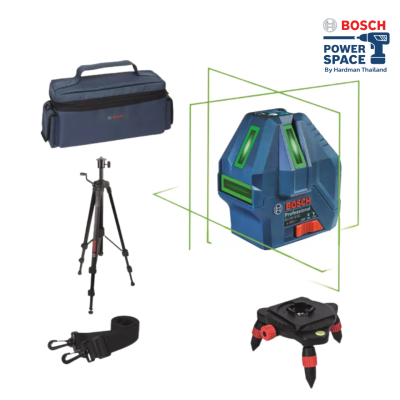

Scope of Delivery (With Battery and Charger)

• GLL 50-15 G

• 1 x shoulder strap

• Carrying bag
• Building tripod BT150-5/8 Professional
